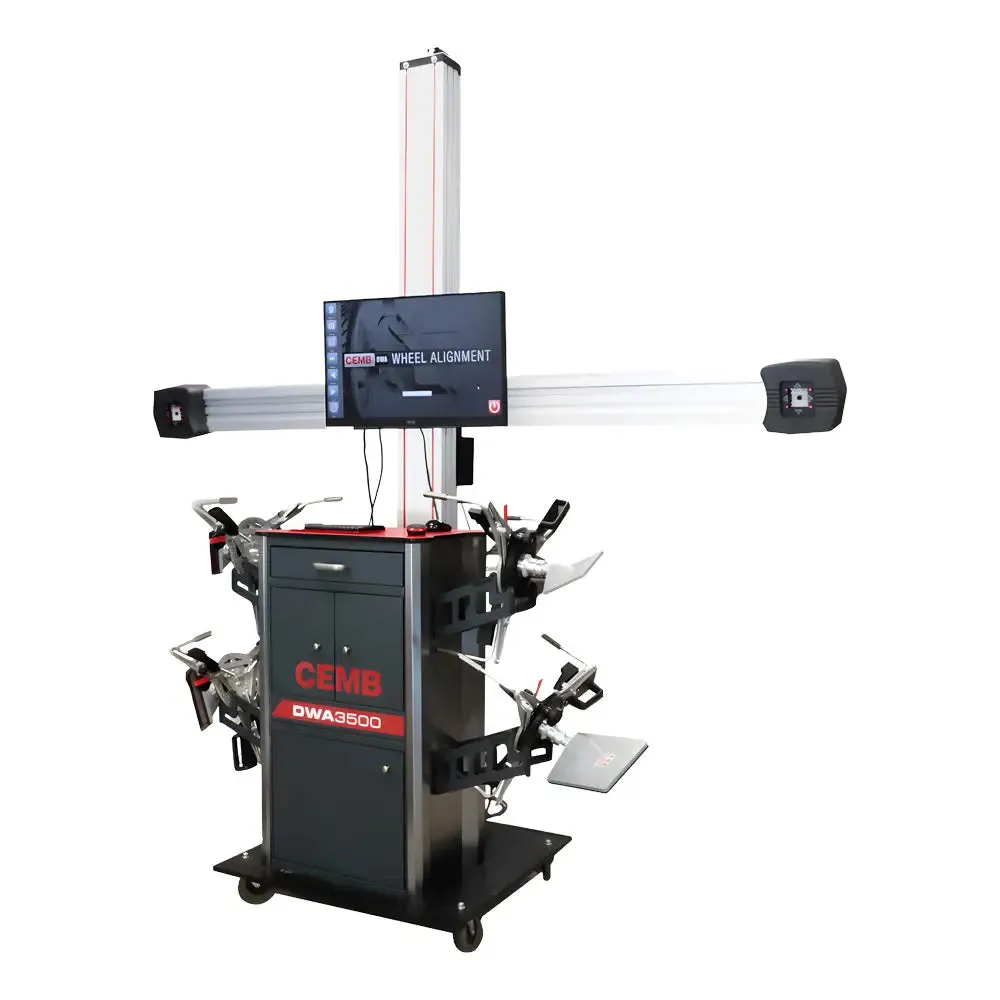

Looking for a state-of-the-art 3D-HD wheel alignment system? Look no further than the DWA3500WG. With its advanced automatic camera beam technology and innovative wheel grabbers, this cutting-edge model is designed for cars and light commercial vehicles. Plus, it features a user-friendly interface and advanced software for precise alignment, as well as a comprehensive vehicle database spanning over 30 years. Plus, the 32" standard screen and HD drive-on assist make for seamless operation. Experience the future of wheel alignment with the DWA3500WG.
Features:
- Automatic Camera Boom
- Advanced Software
- 3D Automatic Gauge
- 30 Year Vehicle Database
- 32" Standard Screen
- Redesigned Cabinet
- HD Drive On Assist
Specs:
Power Supply: 110v, 1PhWheel Clamps: 12in-24in
Shipping Dimension:
- 58 x 44 x 44 370 lbs.
- Boom: 114x30x20 335 lbs.
Shipping Weight:
- Aligner: 360 lbs
- Boom: 335 lbs
- Mobile Trolley: 150 lbs

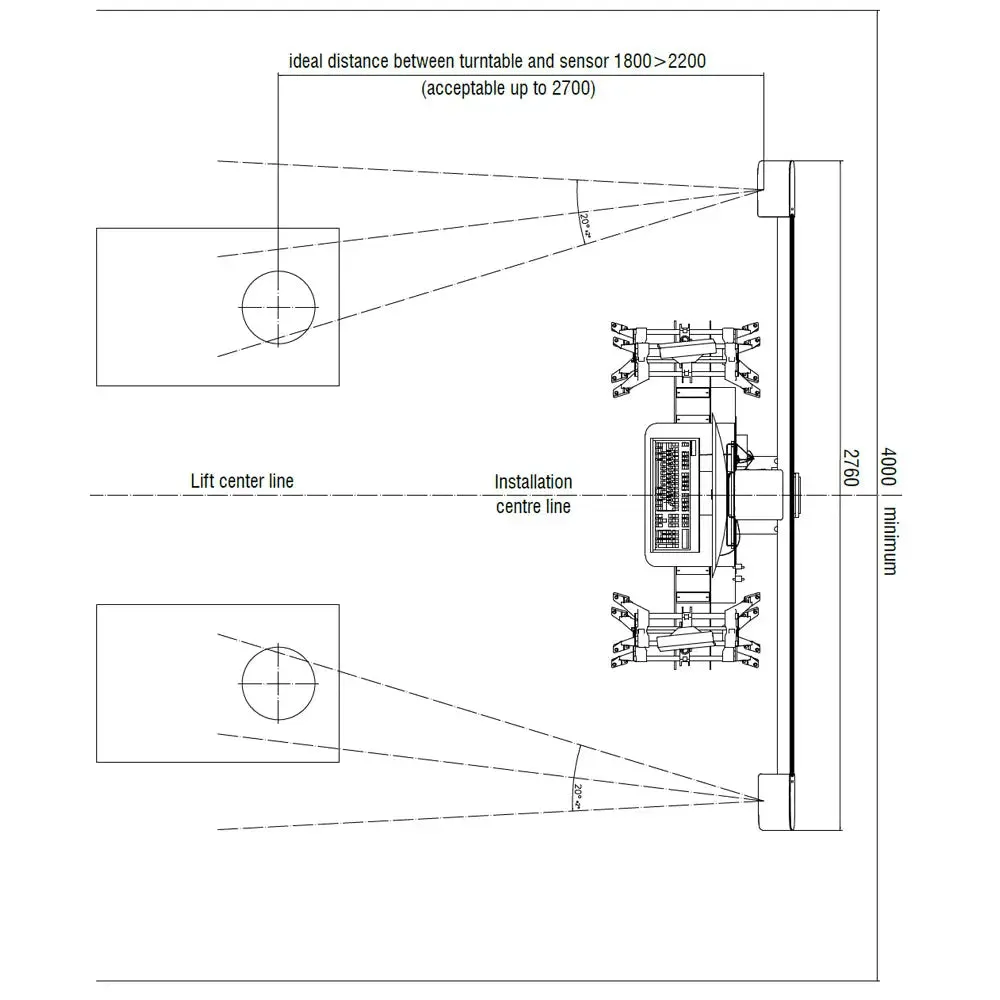

Minimum Installation Distance: 5-/12 ft from the center of the turn plates on the rack to the cameras of the boom, measuring straight and not downwards at an angle.
Maximum Installation Distance: 7-1/2 ft from the center of the turn plates on the rack to the cameras of the boom, measuring straight and not downwards at an angle.
Recommended Installation Distance: 6-1/2 ft from the center of the turn plates on the rack to the cameras of the boom, measuring straight and not downwards at an angle.
Ref No.
DWA3500 (Standard Model)
Application:
Carslight Truck
Light Commercial Vehicles
SUVs
Businesses
Automotive repair shops
Tire shops
Car dealerships
Fleet management companies
Rental car companies
Government agencies

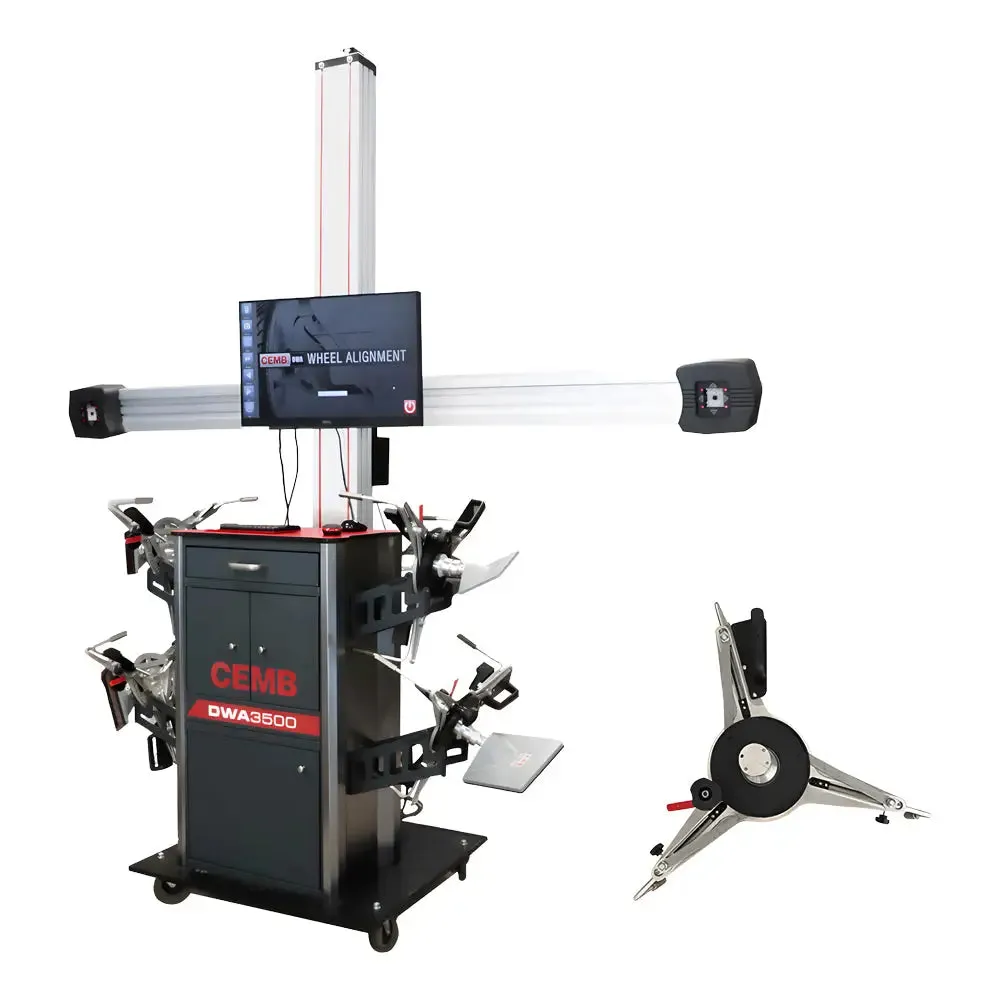

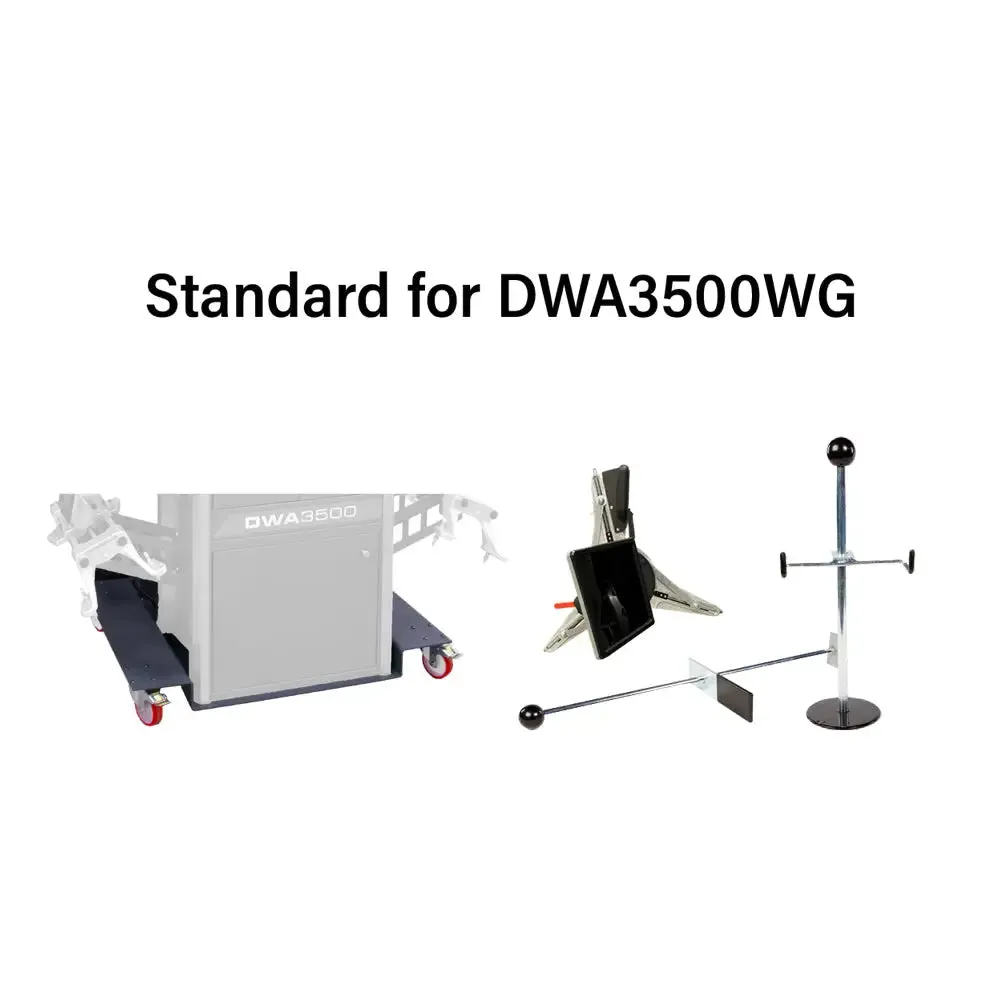

Includes:
1 x DWA3500 Alignment System4 x 3-point Tire Contact Clamps, Wheel-Grabbers
4 x HD Targets
1 x Brake Pedal Depressor
1 x Steering Wheel Holder
1 x Mobile Trolley
Optional
VIN Code Scanner
Pin Plate Adaptor
