Quantity: 1
This only works with the 4D, not separately.

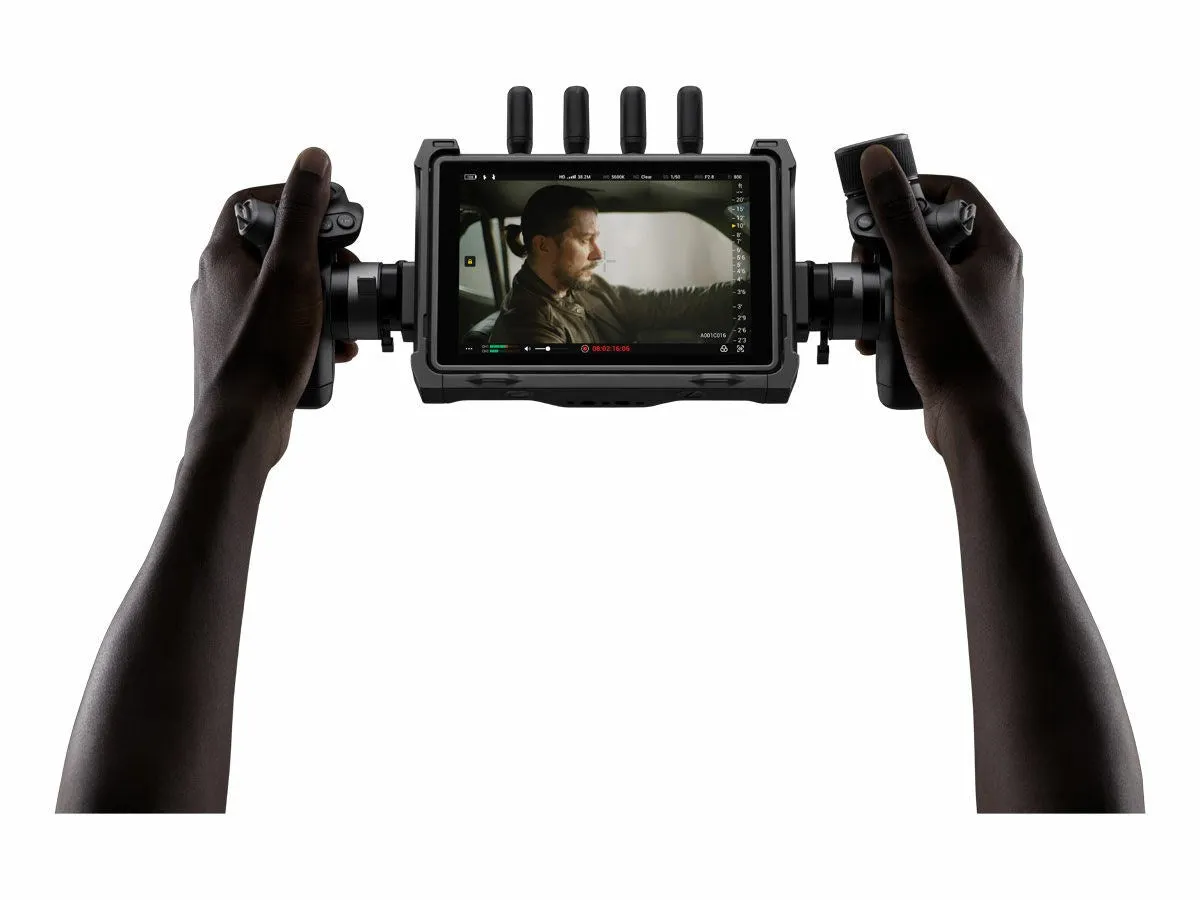

Add a 2nd 7" wireless monitor to your DJI Ronin 4D Gimbal Cinema Camera.
KIT INCLUDES:

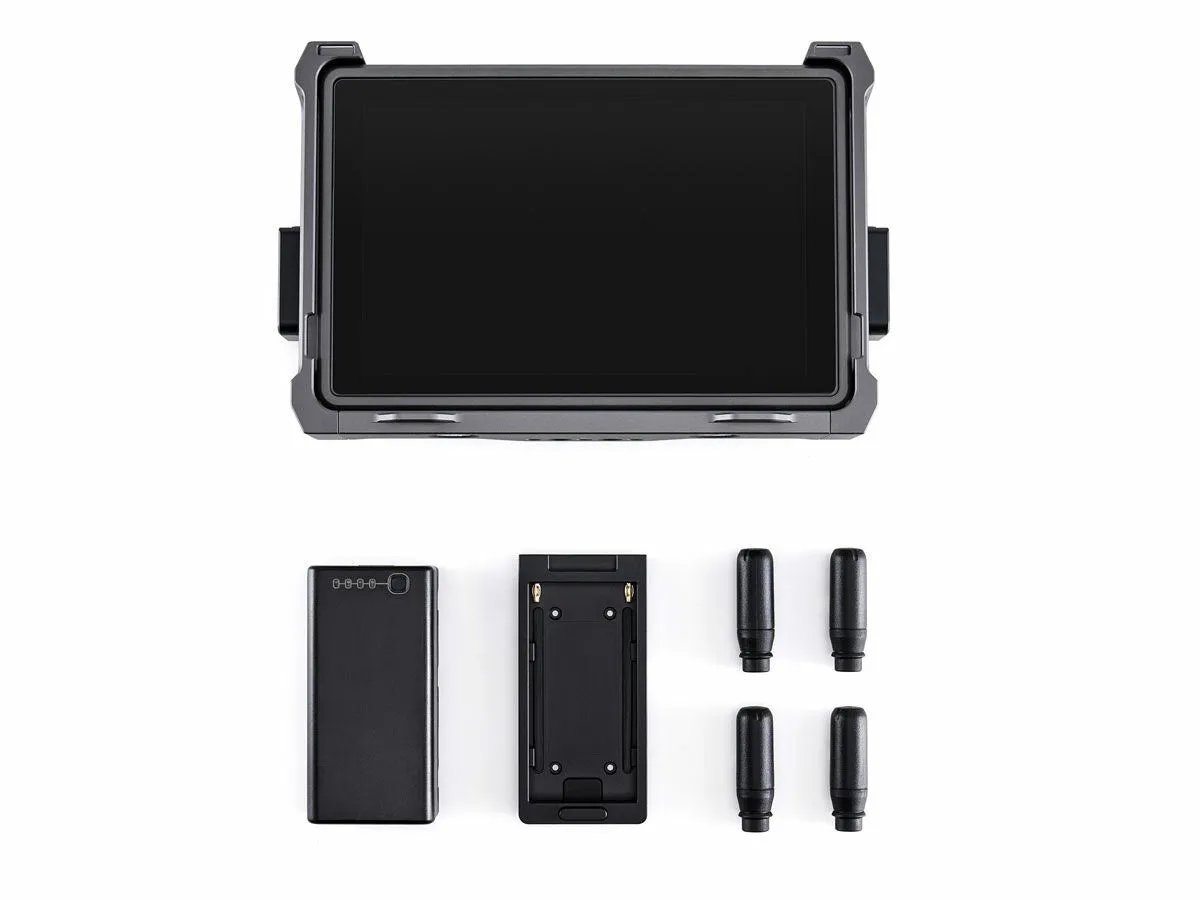

- 1 - 7" Remote Monitor (see specs below)

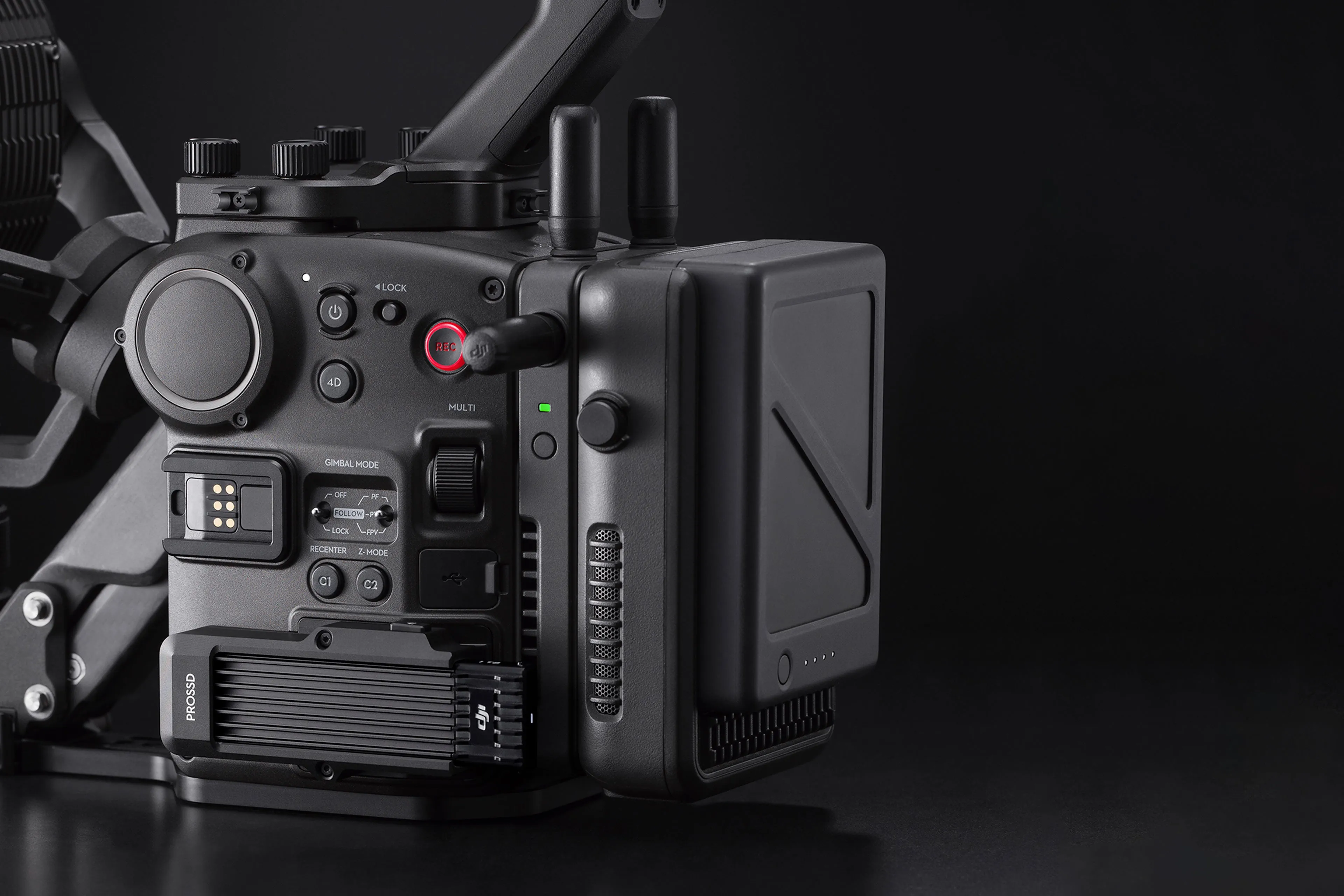

- 1 - DJI Ronin 4D Video Transmitter (see specs below)

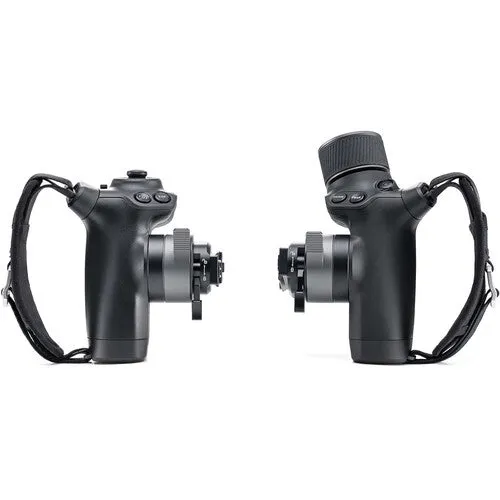

- 1 - Pair of Left/Right Hand Grips
- 1 -DJI WB37 Batteries w/ charger
The system integrates with the 4D Video Transmitter, which is supplied with the VMI-supplied Ronin 4D camera system and permits wireless video transmission and also wireless remote focus using the focus thumbwheel.

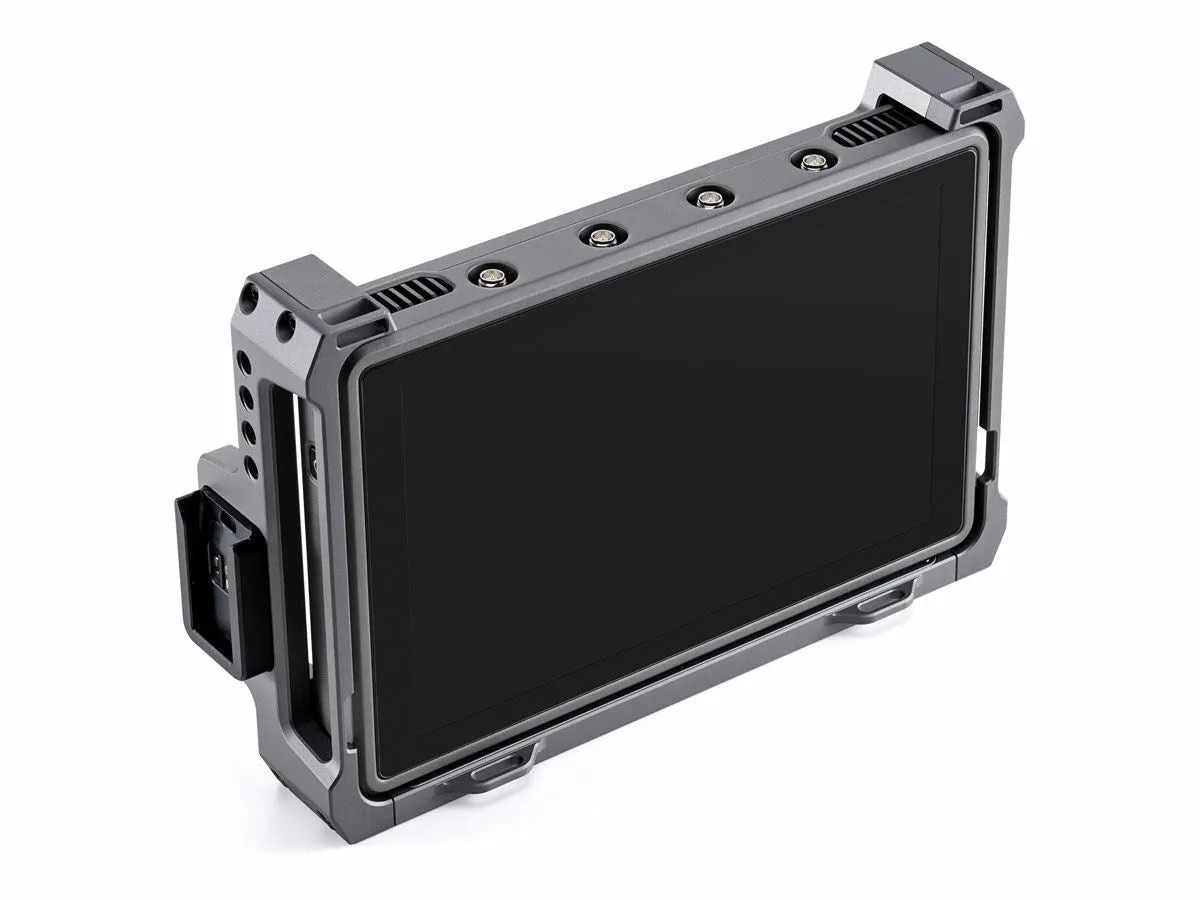

With a built-in wireless video receiver, the High-Bright Remote Monitor has a 7-inch, 1,500-nit high-bright, wide color gamut touchscreen display that can output both HDMI and SDI signals through the expansion module.
Its compact and lightweight body provides optimum portability and efficient setup so users can start shooting immediately.
Note that 1 x 7″ monitor is provided with the DJI Ronin 4D system and this is an additional monitor which can work with the system.
DJI 4D Introduction Video:
KIT INCLUDES:
(1) 7" Remote Monitor (see specs below)
(1) DJI Ronin 4D Video Transmitter (see specs below)
(1) Pair of Left/Right Hand Grips
(2) DJI WB37 Batteries w/ charger
Remote Monitor Specs:
-
Dimensions
-
216×58×166 mm (includes monitor cage)
-
Screen Size
-
7 inches (diagonal)
-
Max Brightness
-
1500 cd/m²
-
Screen Resolution
-
1920×1200
-
Refresh Rate
-
60 Hz
-
Max Battery Life
-
Approx. 2 hours [12]
-
Operating Temperature
-
0° to 40° C (32° to 104° F)
-
Storage Temperature
-
-20° to 60° C (-4° to 140° F)
-
Power System
-
DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
-
Remote Monitor Port
-
3.5mm Stereo Jack × 1
microSD Card Slot × 1 [13]
HDMI Type-A Video Input Port × 1 [14]
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
-
Remote Monitor Expansion Port
-
Remote Monitor Expansion High-Speed Port (male) × 1
HDMI 1.4 Type-A Video Output Port × 1
6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
3G-SDI (Level A) BNC Video Output Port × 1
Transmitter Specs:
-
Dimensions
-
89×21×137 mm
-
4D Video Transmitter Port
-
4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1
-
Max Transmission Distance
-
20,000 ft (approx. 6km, FCC-compliant) [8]
-
Max Transmission Resolution and Frame Rate
-
1920×1080 @60fps
-
Minimum End-to-End Latency
-
100 ms or 68 ms [9]
-
Wireless Frequency
-
Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band: [10]
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz:
≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz
<23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz:
<30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC);<23 dBm (CE/MIC)
5.725-5.850 GHz:
<33 dBm (FCC/SRRC); <14 dBm (CE)
-
Max Bandwidth
-
40 MHz
-
Max Bitrate
-
50 Mbps
